ISTMA Global Partner DMG MORI has recently introduced a new, horizontal-spindle, 5-axis machining centre capable of maximising productivity when machining complex workpieces weighing up to one tonne.

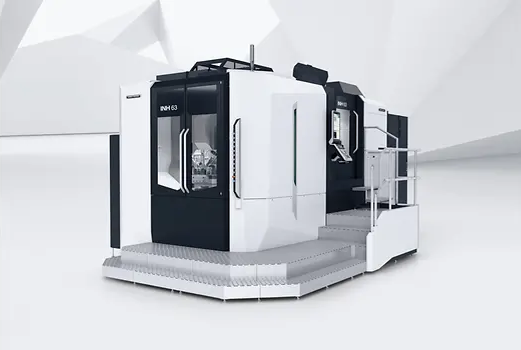

In order to meet the demand for greater productivity and the ability to fulfill environmental responsibilities, DMG MORI has developed the INH 63 5 axis control horizontal machining center for sustainable production with process integration and maximized machine utilization. The robust design of this machining center guarantees long-term accurate production of complex components with workpiece weights of up to 1,000 kg. The working area is ø 1,070 x 1,000 mm. The maximum pallet size is 630 x 630 mm. Thanks to its compact dimensions, the INH 63 can be easily integrated into automated production systems, paving the way for the future of manufacturing. In addition, innovative equipment around the coolant supply ensures highly efficient and thus sustainable operation.
Molds for the die & mold sector, battery boxes for electric vehicles or valve housings in the aerospace sector – the INH 63 convinces with high accuracy and fast machining in a wide range of applications. Its stable design with ball screws in the X, Y and Z axes allow precise and dynamic milling. Direct measuring systems from MAGNESCALE offer high positioning accuracy. In 5-axis machining, the INH 63 offers a wide swivel range of + 45° to -195°, while direct drive motors in the A-axis and B-axis come to speeds of 30 rpm and 90 rpm respectively. In addition, it features a powerMASTER spindle with a speed of 12,000 rpm and 808 Nm of torque for heavy-duty cutting.
A spindle with 16,000 rpm and 1,414 Nm is optionally available. For the MASTER spindles, DMG MORI provides a warranty of 36 months without runtime limitation.
